Tuesday, October 25, 2011

Coherence push replication, com.tangosol.net.DefaultConfigurableCacheFactory cannot be cast to com.oracle.coherence.environment.Environment

Coherence has several incubator project, Push replication is one of them which enable you to turn on replication between several standalone clusters. i.e  Cross WAN replication between data centers.

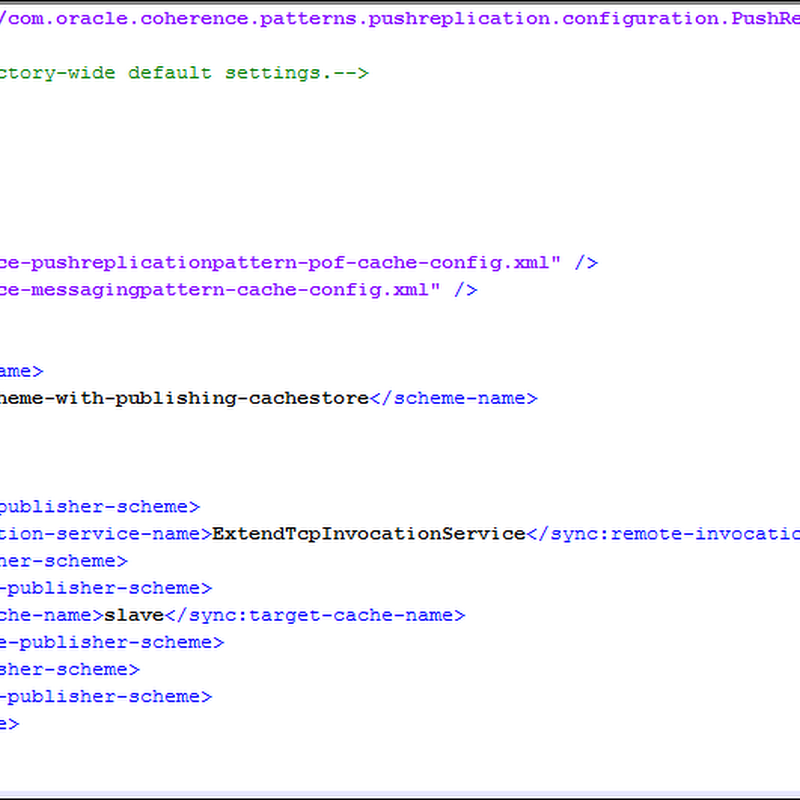

I just read their limited documentation, trying to setup one Master-Slave replication between two separate clusters in my pc. ON the master side, here is the cache configuration. basically load the default coherence config, reference the incubator pof file.
Here is just pickup the remote cluster publisher

using the distributed-scheme-with-publishing-cachestore scheme will enable the runtime to capture the entity change to a queue, then flushed to remote cluster using the remove invocation service.

All set, when I try to feed some data to the local cache which is Master, long stack trace appears.

Map (master): put a 2
2011-10-25 09:17:19.862/22.446 Oracle Coherence GE 3.7.1.0 <Error> (thread=main, member=2):
Portable(com.tangosol.util.WrapperException): (Wrapped: Failed request execution for DistributedCacheWithPublishingCacheStore service on Member(Id=1, Timestamp=
706, Address=192.168.137.1:8090, MachineId=63704, Location=site:E3,machine:androidyou-PC,process:6004, Role=CoherenceServer)) null
        at com.tangosol.util.Base.ensureRuntimeException(Base.java:288)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.Grid.tagException(Grid.CDB:36)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache.onPutRequest(PartitionedCache.CDB:50)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$PutRequest.run(PartitionedCache.CDB:1)
        at com.tangosol.coherence.component.util.DaemonPool$WrapperTask.run(DaemonPool.CDB:1)
        at com.tangosol.coherence.component.util.DaemonPool$WrapperTask.run(DaemonPool.CDB:32)
        at com.tangosol.coherence.component.util.DaemonPool$Daemon.onNotify(DaemonPool.CDB:63)
        at com.tangosol.coherence.component.util.Daemon.run(Daemon.CDB:42)
        at java.lang.Thread.run(Thread.java:619)
        at <process boundary>
        at com.tangosol.io.pof.ThrowablePofSerializer.deserialize(ThrowablePofSerializer.java:57)
        at com.tangosol.io.pof.PofBufferReader.readAsObject(PofBufferReader.java:3316)
        at com.tangosol.io.pof.PofBufferReader.readObject(PofBufferReader.java:2604)
        at com.tangosol.io.pof.ConfigurablePofContext.deserialize(ConfigurablePofContext.java:368)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.Service.readObject(Service.CDB:1)
        at com.tangosol.coherence.component.net.Message.readObject(Message.CDB:1)
        at com.tangosol.coherence.component.net.message.SimpleResponse.read(SimpleResponse.CDB:6)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.Grid.deserializeMessage(Grid.CDB:19)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.Grid.onNotify(Grid.CDB:31)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.PartitionedService.onNotify(PartitionedService.CDB:3)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache.onNotify(PartitionedCache.CDB:3)
        at com.tangosol.coherence.component.util.Daemon.run(Daemon.CDB:42)
        at java.lang.Thread.run(Thread.java:619)
Caused by: Portable(java.lang.UnsupportedOperationException)
        at java.util.AbstractMap.put(AbstractMap.java:186)
        at com.tangosol.util.WrapperObservableMap.put(WrapperObservableMap.java:151)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$Storage.postPut(PartitionedCache.CDB:70)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$Storage.put(PartitionedCache.CDB:17)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache.onPutRequest(PartitionedCache.CDB:25)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$PutRequest.run(PartitionedCache.CDB:1)
        at com.tangosol.coherence.component.util.DaemonPool$WrapperTask.run(DaemonPool.CDB:1)
        at com.tangosol.coherence.component.util.DaemonPool$WrapperTask.run(DaemonPool.CDB:32)
        at com.tangosol.coherence.component.util.DaemonPool$Daemon.onNotify(DaemonPool.CDB:63)
        at com.tangosol.coherence.component.util.Daemon.run(Daemon.CDB:42)
        at java.lang.Thread.run(Thread.java:619)
        at <process boundary>
        at com.tangosol.io.pof.ThrowablePofSerializer.deserialize(ThrowablePofSerializer.java:57)


ON the storage Node, the error that may bring you here,

</class-scheme>) java.lang.reflect.InvocationTargetException
        at com.tangosol.util.Base.ensureRuntimeException(Base.java:288)
        at com.tangosol.run.xml.XmlHelper.createInstance(XmlHelper.java:2652)
        at com.tangosol.run.xml.XmlHelper.createInstance(XmlHelper.java:2536)
        at com.tangosol.net.DefaultConfigurableCacheFactory.instantiateAny(DefaultConfigurableCacheFactory.java:3476)
        at com.tangosol.net.DefaultConfigurableCacheFactory.instantiateCacheStore(DefaultConfigurableCacheFactory.java:3324)
        at com.tangosol.net.DefaultConfigurableCacheFactory.instantiateReadWriteBackingMap(DefaultConfigurableCacheFactory.java:1753)
        at com.tangosol.net.DefaultConfigurableCacheFactory.configureBackingMap(DefaultConfigurableCacheFactory.java:1500)
        at com.tangosol.net.DefaultConfigurableCacheFactory$Manager.instantiateBackingMap(DefaultConfigurableCacheFactory.java:4111)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$Storage.instantiateBackingMap(Partitione
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$Storage.setCacheName(PartitionedCache.CD
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$ServiceConfig$ConfigListener.entryInsert
CDB:17)
        at com.tangosol.util.MapEvent.dispatch(MapEvent.java:266)
        at com.tangosol.util.MapEvent.dispatch(MapEvent.java:226)
        at com.tangosol.util.MapListenerSupport.fireEvent(MapListenerSupport.java:567)
        at com.tangosol.util.ObservableHashMap.dispatchEvent(ObservableHashMap.java:229)
        at com.tangosol.util.ObservableHashMap$Entry.onAdd(ObservableHashMap.java:270)
        at com.tangosol.util.SafeHashMap.put(SafeHashMap.java:244)
        at com.tangosol.coherence.component.util.ServiceConfig$Map.put(ServiceConfig.CDB:43)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache$StorageIdRequest.onReceived(PartitionedC
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.Grid.onMessage(Grid.CDB:34)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.Grid.onNotify(Grid.CDB:33)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.PartitionedService.onNotify(PartitionedService.CDB:3)
        at com.tangosol.coherence.component.util.daemon.queueProcessor.service.grid.partitionedService.PartitionedCache.onNotify(PartitionedCache.CDB:3)
        at com.tangosol.coherence.component.util.Daemon.run(Daemon.CDB:42)
        at java.lang.Thread.run(Thread.java:619)
Caused by: java.lang.reflect.InvocationTargetException
        at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
        at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:39)
        at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:27)
        at java.lang.reflect.Constructor.newInstance(Constructor.java:513)
        at com.tangosol.util.ClassHelper.newInstance(ClassHelper.java:694)
        at com.tangosol.run.xml.XmlHelper.createInstance(XmlHelper.java:2611)
        ... 23 more
Caused by: java.lang.ClassCastException: com.tangosol.net.DefaultConfigurableCacheFactory cannot be cast to com.oracle.coherence.environment.Environment
        at com.oracle.coherence.patterns.pushreplication.PublishingCacheStore.<init>(PublishingCacheStore.java:179)

        ... 29 more
2011-10-25 09:17:16.120/18.685 Oracle Coherence GE 3.7.1.0 <D5> (thread=Cluster, member=1): Member 2 joined Service DistributedCacheWithPublishingCacheStore wit


trying to cast DefautCOnfigurableCacheFactory to Envionment? what is Environment class located, in standard coherence, or Incubator project? Iet me find it out in eclipse.
It is in the common lib used by push replication,


check the class hierarchy, it’s another cachefactory,

then change our cachefactory from the default DefautCOnfigurableCacheFactory  to the incubator cache facotry, it will pick up the setting like sync namespace.

Old,
imageshould be,

then all back to normal. Hope it helps
