Sunday, July 4, 2010

android update, flash_image not found

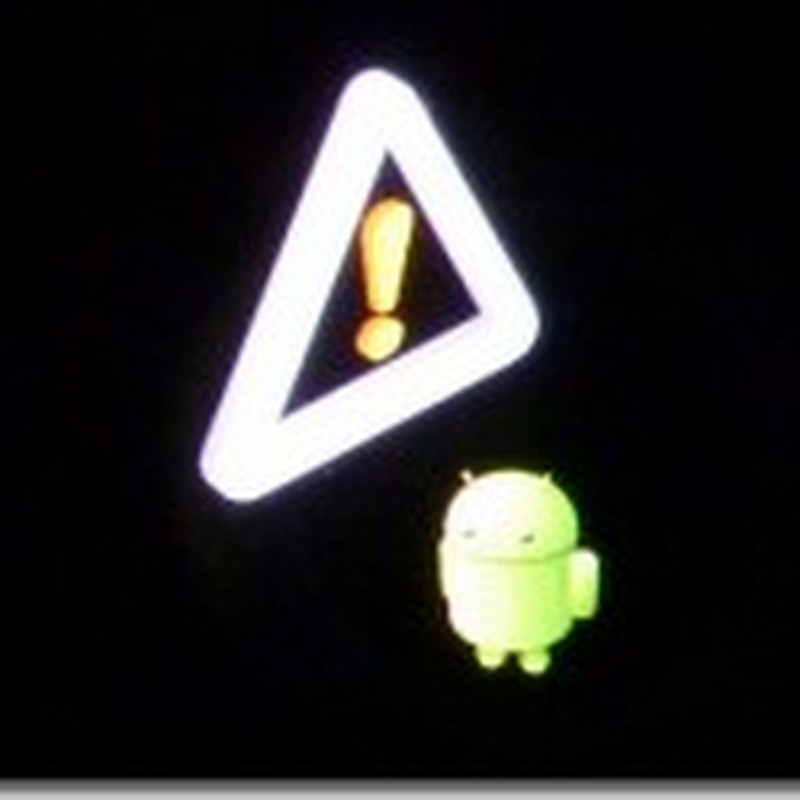

When you’ve already rooted your Nexus one like me,  you may noticed that even Google Push the update 2.2 to you device over OTA, you end up with a screen has a ! in the triangle.


Just Search “Install android 2.2 on rooted nexus one”, you may get tens of blogs.

I just follow on link here,

when I hold power/volum+ to the recovery mode, I don’t have the chose of Flash zip from SDK as mentationed in the blog


I only have 4 choices. as bellow



then I figure out we need to install recovery-RA-nexus which has the flash zip from sdcard features.

when you download the recovery-RA-nexus-xx.img, you need a utility called flash_image to load the imge to recovery partition. I try this , it looks like there is no flash_image command in my system.

Finally , here is one step to port the utility to phone devices.

Download the and unzip to your PC folder. install the ADB from Android Sdk site. then you will be able to run adb command

adb root
This will start ADB as root, or notify if it is already running as root.
adb remount
This will mount the system partition (/system) as writable, allowing the following
adb push flash_image /system/bin
This will send the flash_image script into the /system/bin, so we can use it from within the shell
adb shell chmod 0755 /system/bin/flash_image
Finally, change the permissions of the script to allow it to perform the desired action. Now that the script is installed, we are ready to proceed with flashing the custom recovery, saved on the root of the SD card earlier:
adb shell flash_image recovery /sdcard/recovery.img

then run “reboot recovery” , the phone will be rebooted to recoery mode. you will be able to run the option called “Flash zip from sd card”

Hope you can get the following screen like me.
